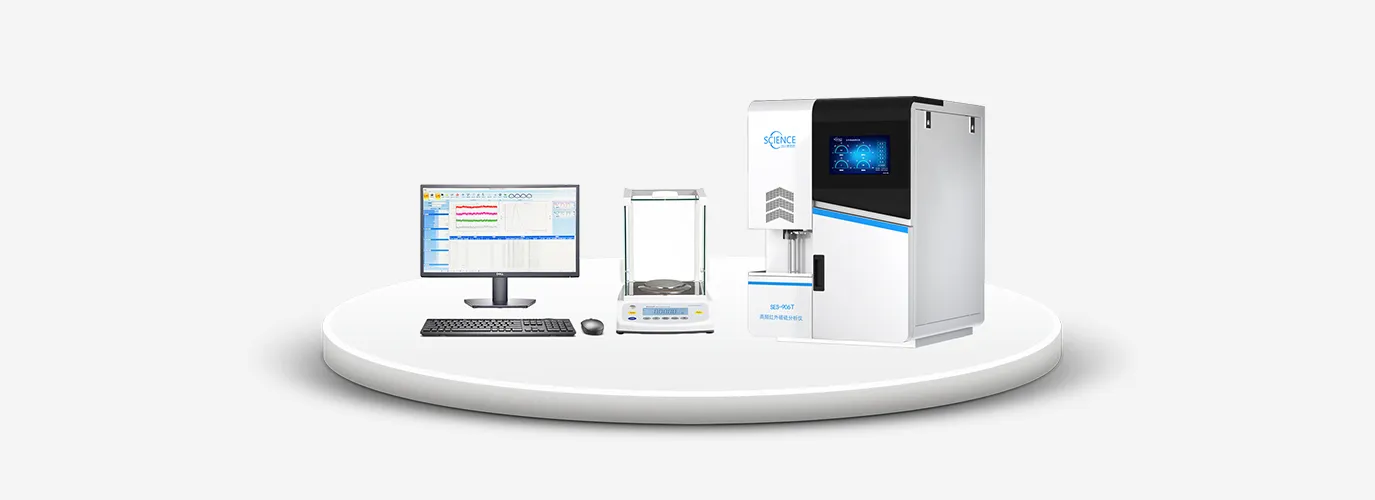

The high-frequency infrared carbon sulfur analyzer utilizes an advanced third-generation constant-temperature furnace system and double-layer infrared constant-temperature technology. Quartz tube automatic loading and vacuum ceramic capacitor oscillation technology ensure the instrument is adaptable to the combustion of a wide range of solid samples. A full-state detection system monitors instrument status in real time, and temperature compensation adjusts test data based on temperature changes. As the only dual-operation system in China, the full touchscreen design and dual microcomputer operating systems of the infrared carbon sulfur analyzer simplify operation and ensure test accuracy.
High-precision vacuum ceramic capacitors
Fully mirrored stainless steel piping
Pre-purification device
Physical dehydration device
Catalytic furnace
Automatic sample injection
Double-layer constant temperature infrared cell

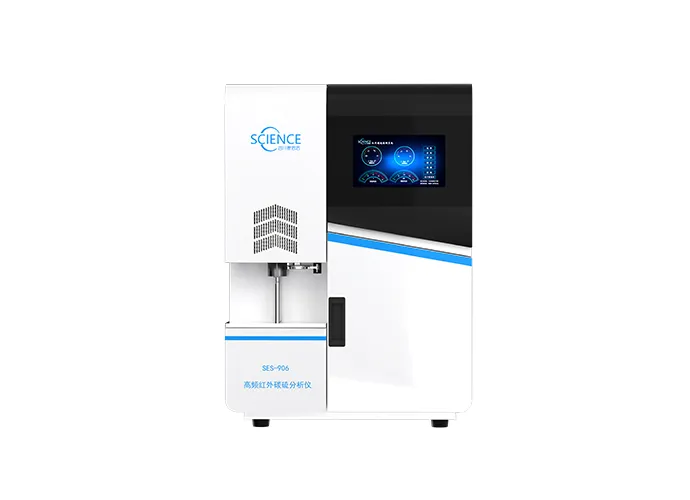

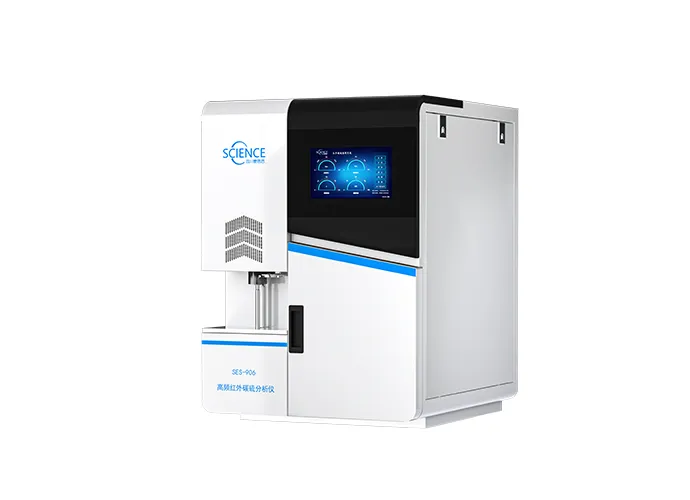

MODEL | SES-906 |
ANALYZE THE VARIETY | Black metals, non-ferrous metals, alloy materials, rocks and minerals, soil, titanium dioxide, new energy materials, and other non-metalic materials |
ANALYSIS SCOPE | Low carbon:0.00001-0.5% High carbon:0.01-99.99% Low sulfur 0.00001-0.5% High sulfur:0.01-99.99% |
SENSITIVITY | Carbon: 0.01ppm System:0.01ppm |
ACCURACY | Carbon:1ppm or RSD≤0.5% (one of the two conditions is met) Sulfur.1ppm or RSD≤0.5% (one of the two conditions is met) |
REFERENCE STANDARDS | Carbon meets the ISO9556 standard, sulfur meets the ISO4935 standard, Comply with JG395-2016 "Measurement Regulations for Carbon and Sulfur Analyzer", GB/T 20123-2006/ISO15350.2000 "Determination of Total Carbon and Sulfur Content in lron and Steel-Infrared Absorption Method after High Frequency Induction Furnace Combustion" |
DETECTION | Non dispersive infrared absorption method, high-sensitivity carbon infrared detection |
ANALYSIS TIME | Adjustable within 45 seconds, the analysis end point can be controlled based on both absorbance and time |
ANALYTICAL ABILITY | Usually 60 samples per hour |
CORRECTION METHOD | Single point, multi-point, linear correction, can establish first, second, third, fourth, and fifth correction curves |
POWER SUPPLY | 220V/50Hz+5% |
HIGH FREQUENCY FURNACE POWER | 3.5KW/20MHz,dual air cooling system, quick loading and unloading components for combustion tubes |
ADJUSTABLE POWER | Equipped with power regulation function, automatically matched with analysis methods |
HEATINGTEMPERATURE | 2000°C (infinitely adjustable) |
DUST REMOVAL METHOD | Intelligent dual zone fully automatic dust removal, integrating high-pressure blowback, dust brushing,slag and dust separation, dust suction, and dust collection in one |
SMART STAY | Equipped with intelligent sleep function, the instrument automatically shuts off power and gas when there is no operation |
DATA INTERFACE | USB, RS232, Free choice of network card, etc. |
REQUIRED GAS | Oxygen 99.5% purity, 35psi (2.41bar)+10%. |
| INFRARED CONSTANT TEMPERATURE | Equipped with an automatic temperature control system, with a temperature difference of ±0.5℃ |
ANALYZE PARAMETERS | Flexible changes can be made according to sample requirements, and standard curves can be established separately for each analysis condition |
GAS PIPELINE | Full miror stainless steel pipeline with strong corrosion resistance and long-term air tightness |
CAPACITOR TYPE | High precision vacuum ceramic capacitor |
OPTIONAL DEVICES | CO catalytic furnace/physical water removal device/automatic sample delivery device |
CONDITION MONITORING | 12 inch touch screen for real-time display and control of equipment, automatically monitoring parameters such as air pressure, voltage, airflow, current, etc. that exceed their rated values and automatically triggering alams |
OPERATING SYSTEM | Dual microcomputer operating system, equipped with a 12 inch touchscreen computer on the body, capable of independently operating and monitoring instruments without the need for an analytical computer |
EXTERNAL DIMENSIONS | L601*W702*H866mm |
