In the competitive landscape of metal manufacturing, whether you are pouring cast iron or machining aerospace-grade aluminum, time is your most critical asset. For Quality Control Managers and Metallurgical Lab Directors, the traditional "furnace-front" testing process often creates an agonizing bottleneck.
Waiting for slow chemical analysis or dealing with legacy spectrometers that require constant recalibration means molten metal sits waiting, burning energy and risking out-of-spec pours. Furthermore, as modern foundries increasingly handle multiple materials—shifting from ferrous to non-ferrous alloys on the same floor—managing separate instruments for different bases becomes financially unsustainable.
The industry requires a solution that delivers full-spectrum elemental data instantly, without the crippling maintenance overhead.
The reliability of a Spark Optical Emission Spectrometer (OES) is defined by its optical system and excitation source.

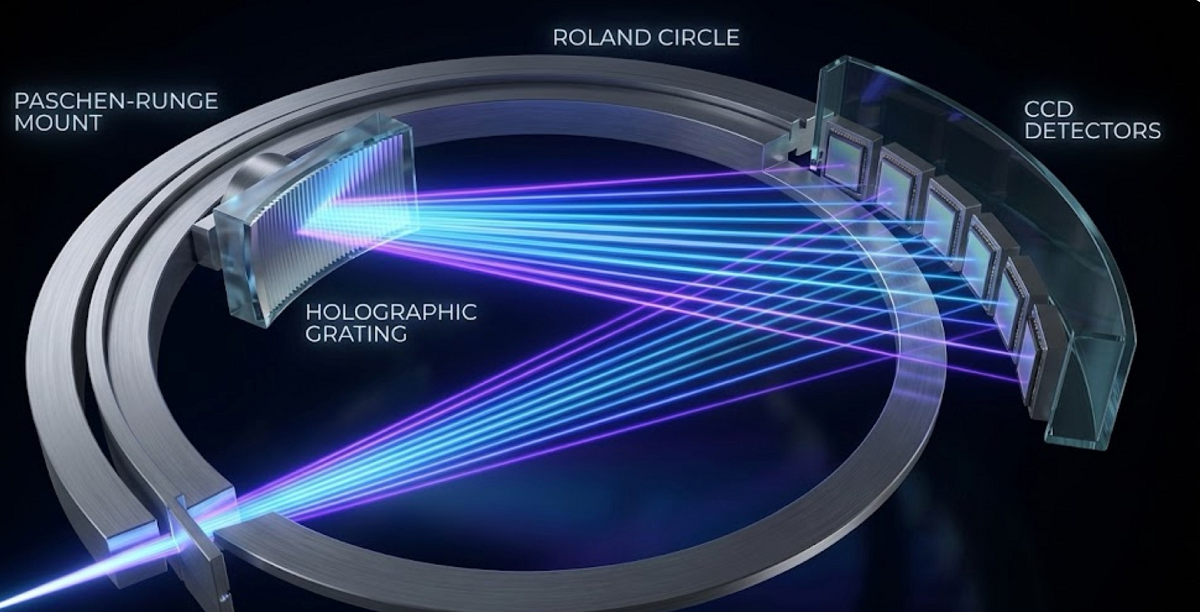

The SES-2400 is engineered around the proven Paschen-Runge optical architecture with a 400mm Roland circle. Coupled with high-performance CCD detectors (3648+46 pixels), it achieves exceptional resolution (better than 0.01 nm) across a massive 120–800 nm wavelength range. This broad spectrum ensures that critical elements, including elusive non-metals like Carbon, Phosphorus, and Sulfur, are detected with absolute clarity.
To guarantee consistent excitation regardless of the sample's surface condition, the SES-2400 utilizes High Energy Precombustion Technology (HEPS). This digital light source delivers a powerful 1–100A plasma discharge, instantly penetrating oxide layers to ensure stable, repeatable analysis.
Developed by Sichuan Weihong Technology (Syens), the SES-2400 is not just a high-precision instrument; it is designed to maximize your laboratory’s ROI through intelligent engineering:
15-25 Second Rapid Analysis: From spark to full elemental composition report, the entire process takes less than half a minute. This rapid feedback loop allows furnace operators to adjust melts in real-time, preventing costly scrap and rework.
Revolutionary Intermittent Vacuum System: Traditional OES systems require vacuum pumps to run continuously 24/7, leading to high noise levels, extreme wear, and frequent replacements. The SES-2400 features a smart intermittent system—the vacuum pump operates for just 5 minutes to maintain a high-vacuum state for over 4 hours. This drastically reduces noise pollution, cuts standby power to a mere 75W, and exponentially extends the life of your pump.
Ultra-Stable 35°C Optical Chamber: Environmental temperature fluctuations are the enemy of optical precision. The SES-2400 features an ultra-thin integrated light room that automatically maintains a constant 35°C (± 0.2°C). Whether your lab is facing a harsh winter or a sweltering summer, the optical alignment remains perfectly locked in.
The true value of the SES-2400 lies in its versatility. It is pre-configured to handle an extensive array of metallic bases without complex hardware swaps:
Ferrous Metals: Pig iron, cast steel, and complex steel alloys.
Non-Ferrous Metals: Aluminum, Copper, Zinc, Magnesium, Nickel, Titanium, and Lead alloys.
In today's stringent regulatory environment, ensuring compliance with international standards (ASTM, ISO, DIN) is non-negotiable. The SES-2400 Spark OES Spectrometer provides the exact elemental breakdown you need, faster than ever, while significantly lowering your total cost of ownership through its innovative vacuum and thermal design.
Stop letting slow analysis dictate your production schedule.
Ready to accelerate your quality control?
[Request a Detailed Quote & Specification Sheet] or [Send Us Your Toughest Metal Sample for a Free Analysis Report] today to see the SES-2400 in action.
