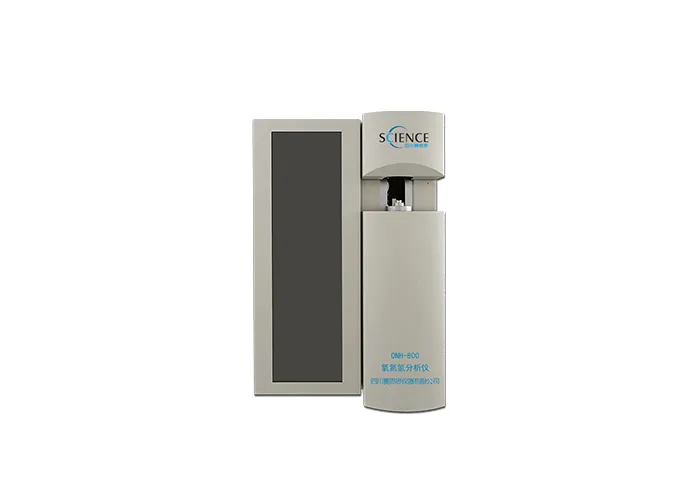

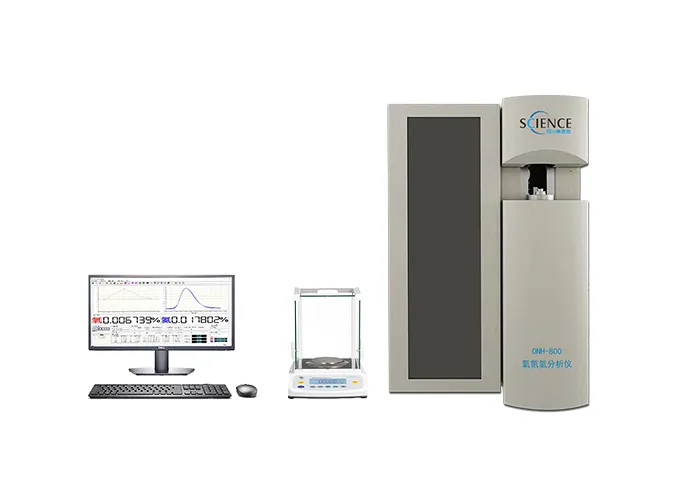

Oxygen Nitrogen Hydrogen Analyzer is a high-performance analyzer for rapid and accurate oxygen nitrogen hydrogen analysis. The oxygen nitrogen hydrogen analyzer is suitable for determining oxygen, nitrogen, and hydrogen content in solid metal and non-metal materials, including ferrous and non-ferrous metals, superconducting materials, semiconductor materials, rare earth materials, ceramics, and refractories.
High analytical accuracy
Reaching 1 ppm for oxygen and nitrogen, and 0.2 ppm for hydrogen. Equipped with a 24-bit high-precision data acquisition system, a low-drift, high-precision thermal conductivity detector, and unique infrared hydrogen measurement technology, these technologies ensure accurate and stable oxygen nitrogen hydrogen analysis.
Powerful Pulse Furnace Technology
The pulse furnace boasts high power, reaching up to 12 kW, making the oxygen nitrogen hydrogen analyzer suitable for analyzing high-boiling-point samples. Digital power control, controlled by a closed-loop computer, ensures stable current and consistent sample release rates. The transformer utilizes natural air convection cooling, eliminating the need for cooling water and ensuring high reliability.
Intelligent and Automated Design
The oxygen nitrogen hydrogen analyzer features a modular, integrated design with a simple and elegant appearance. The main unit of the oxygen nitrogen hydrogen analyzer is controlled by a 32-bit embedded ARM microcomputer, offering automatic zeroing and high and low range switching. The sample introduction mechanism is simple, efficient, and supports automated sample introduction.
Wide Range of Applications
Suitable for oxygen nitrogen hydrogen analysis in a variety of metallic and non-metallic solid materials, including ferrous and non-ferrous metals, superconducting materials, semiconductor materials, rare earth materials, ceramics, and refractories.
High cost-effectiveness
With the same performance indicators, the price of the oxygen nitrogen hydrogen analyzer is only 30%-50% of similar foreign products, which greatly reduces the user's procurement cost. At the same time, the oxygen nitrogen hydrogen analyzer also provides comprehensive after-sales service and technical support.

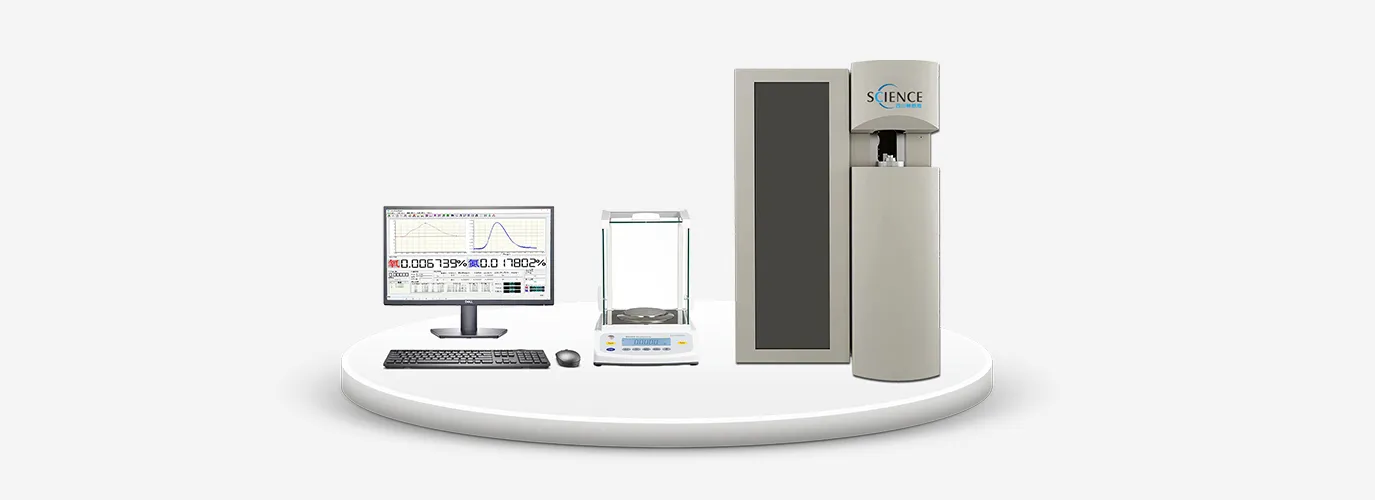

MODEL | ONH-800 |
APPLICATION AREA | Determination of oxygen, nitrogen, and hydrogen content in ferrous metals, nonferrous metals, various alloys, zirconium, titanium, molybdenum, nickel, ceramics, rare-earth, and other solid materials |
ANALYSIS SCOPE | Oxygen: 0.00005%~3.0% Nitrogen:0.00005%-3.0%:0.0005%-0.19% The analysis range can be expanded by reducing the sample weight |
OVERALL POWER | 8KW |
MINIMUM READING | 0.000001% |
INSTRUMENTACCURACY | Oxyger: 1.0ppmorRSD≤1.0%nitrogen:1.0ppmorRSD≤1.0% Hydrogen: 0.2ppmor RSD≤ 1.0% based on solid standard sample, and both meet either |
ANALYSIS TIME | Oxygen:120~180snitrogen:120-240shydrogen:120~1805 |
ANALYTICAL METHOD | Oxygen: infrared absorption method nitrogen: thermal conductivity method Hydrogen: infrared absorption method |
ELECTRONIC BALANCE | 0.0001g |
PULSE FURNACE | Maximum current:1500A; Maximum power:8KVA; Maximum temperature:3500℃ |
PNEUMATIC SYSTEM | The integrated floortype complete machine design is adopted,vith open space and more concise and rliable gas path system |
CIRCUIT SYSTEM | Large-scale integration is adopted, and the circuit boards are powered by solid-state power modules |
DETECTING SYSTEM | Using the principle of thermal conductivity infrared detection, the simultaneous detection of oxygen, nitrogen and hydrogenis truly realized |
SOFTWARE FUNCTION | It has the functions of automatic switching between high and low content, real-time monitoring of mathematical statistics and analysis parameters, etc. |
OTHER FUNCTIONS | Internal constant temperature monitoring, communication detection |
CARRIER GAS | High purityhelium(high purity argon)99.99%,0.40MPa |
DYNAMIC GAS | Ordinary ammonia (or purified compressed air), 0.25MPa |
CHEMICAL REAGENT | Magnesium perchlorate, caustic soda asbestos |
WORKING POWER SUPPLY | 220v+10%; frequency: 50Hz |
OVERALL DIMENSIONS | L1000*W800*H1400mm |
