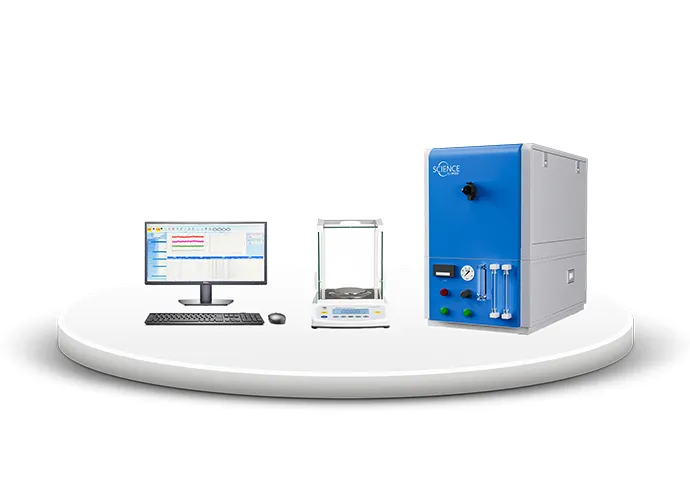

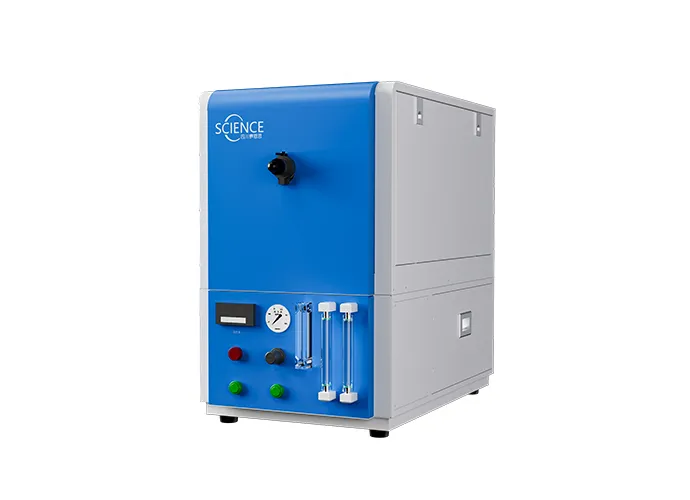

The tube furnace infrared carbon sulfur analyzer is an analytical instrument based on the tubular furnace combustion-infrared absorption method. The core function of the infrared carbon sulfur analyzer is to accurately detect the carbon (C) and sulfur (S) content in solid samples such as metals, non-metals, ores, and ceramics. The infrared carbon sulfur analyzer is widely used in quality control and composition analysis in metallurgy, materials, geology, chemical industry and other fields.
Secondary Water Removal and Purification Device
The tube furnace infrared carbon sulfur analyzer has a secondary water removal and purification device, which has good water removal effect and low maintenance cost, and can effectively eliminate the interference of water in moisture samples to sulfur determination.
Dual Gas Supply
The patented technology of "dual gas supply" solves the technical problem that the combustion process of a tubular furnace cannot be matched with infrared detection due to the phenomenon of "flow interruption", and ensures the repeatability (precision) of the detection by the infrared carbon sulfur analyzer.
Constant Flow
Using the special joint developed by our company, oxygen can be supplied under high pressure to ensure accurate detection under the condition of "constant flow".
Integrated Metal Filter
The dust removal rate reaches 100% by using the "integrated metal filter" dust removal technology.
| MODEL | SES-706 |
| PRODUCT POSITIONING | Total carbon and sulfur detection |
| ANALYZE THE VARIETY | Non-metallic |
| ANALYSIS SCOPE | Carbon:0.0001~99.9% Sulfur:0.0001~99.9% |
| REPEATABILITY | Carbon meets 1S09556 standard, sulfur meets ISO4935 standard |
| ANALYSIS TIME | 60-120 seconds (depending on the sample) |
| PRECISION | ±1℃ |
| CORRECTION METHOD | Single-point or multi-point linear correction |
| TUBE FURNACE POWER | 2.5kw/4kw (optional) |
| MAXIMUM FURNACE TEMPERATURE | 1300℃/1600℃ (optional) |
| ELECTRONIC BALANCE SENSITIVITY | 0.1mg (one ten thousandth) |
| ANALYZE PARAMETERS | Flexible changes can be made according to sample requirements, and standard curves can be established separately for each analysis condition |
| INFRARED CONSTANT TEMPERATURE | Equipped with an automatic temperature control system, with a temperature difference of ±0.5℃ |
| COMBUSTION TUBE TYPE | Quartz tube/corundum tube (optional) |
| OPTIONAL DEVICES | Pre-purification device |
| DATA TRANSMISSION | USB, RS232, Free choice of network card, etc. |
| INFRARED SAMPLING FREQUENCY | 25Hz ultra-high sampling frequency |
| EXTERNAL DIMENSIONS | L473*W755*H740mm |
| STANDARD SAMPLE | S STANDARD VALUE(%) | WEIGHING | S TEST VALUE(%) |
| Sulfur concentrate (GSB04-2709-2011) | 47.24 | 0.0494 | 47.39 |
| 0.0482 | 47.33 | ||
| 0.0497 | 47.36 | ||
| 0.0514 | 47.39 | ||
| 0.0493 | 47.04 | ||
| 0.5033 | 47.19 |
